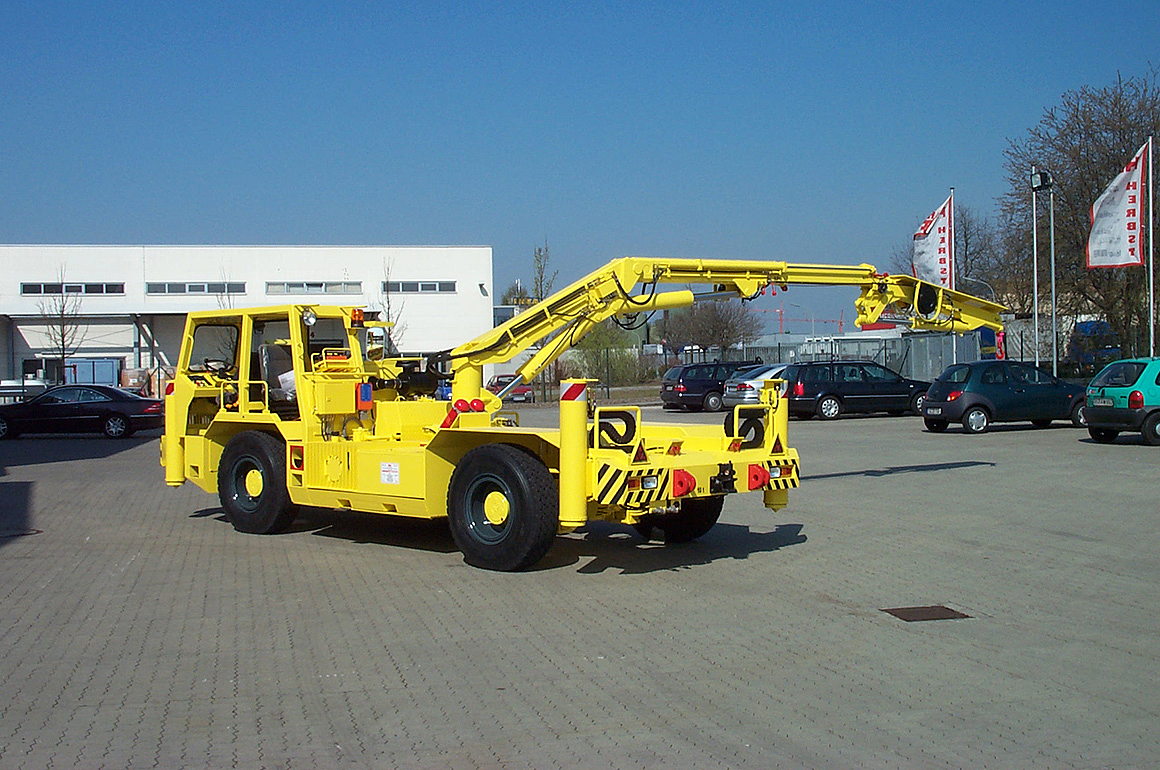

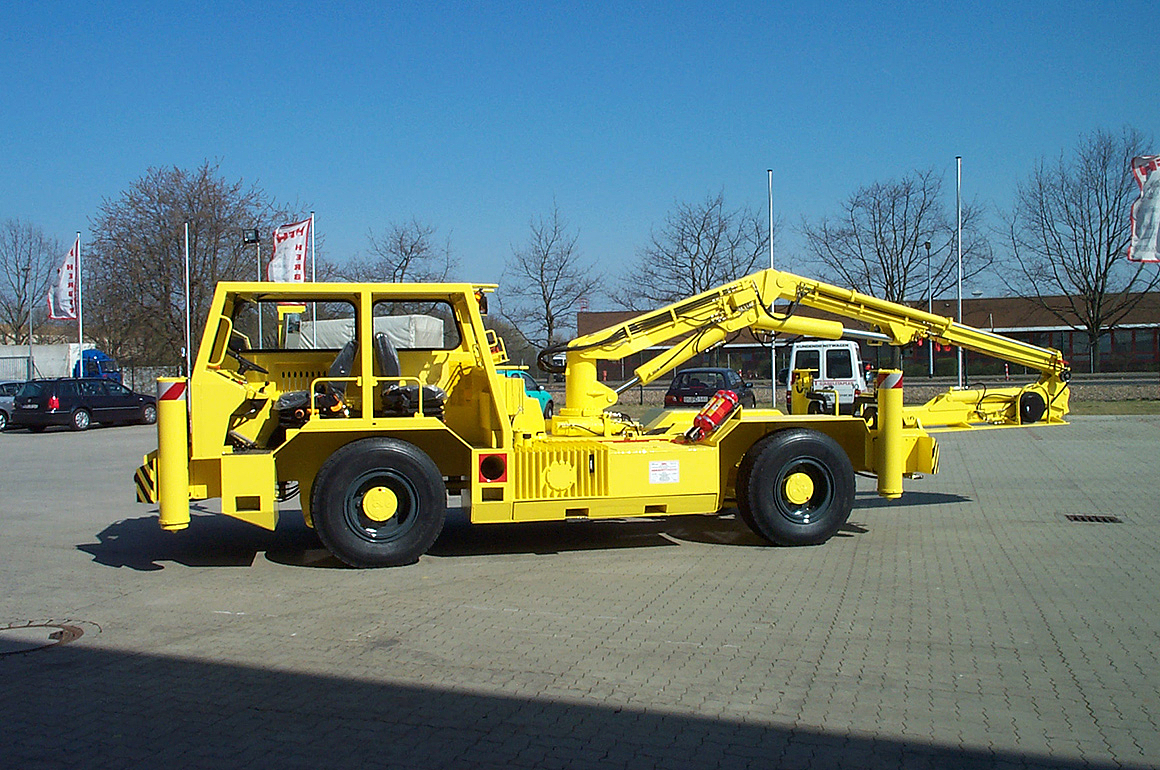

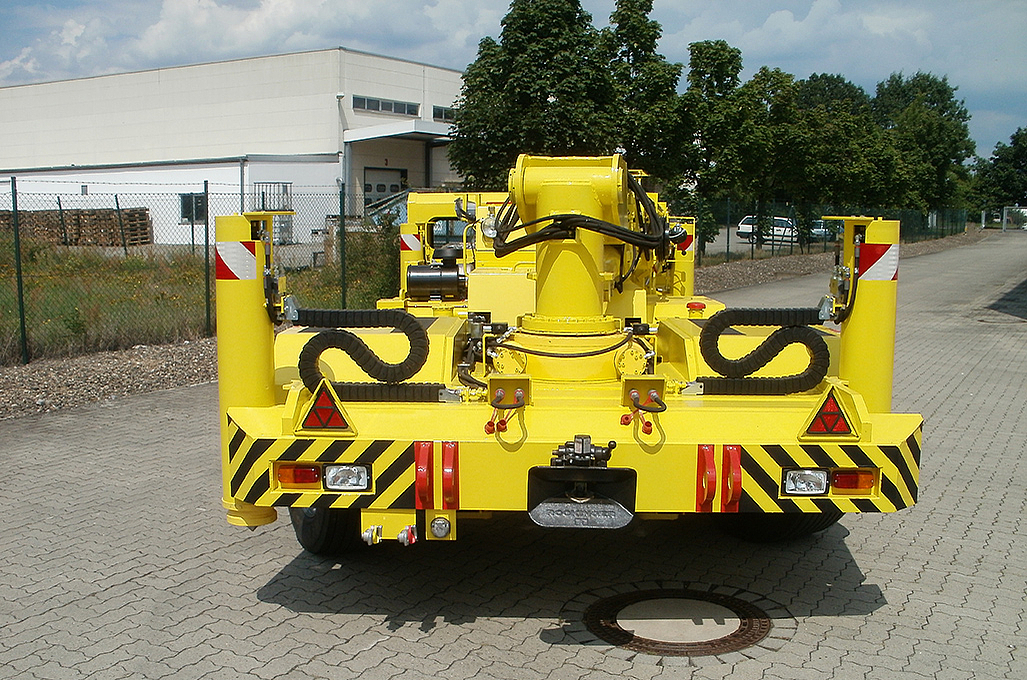

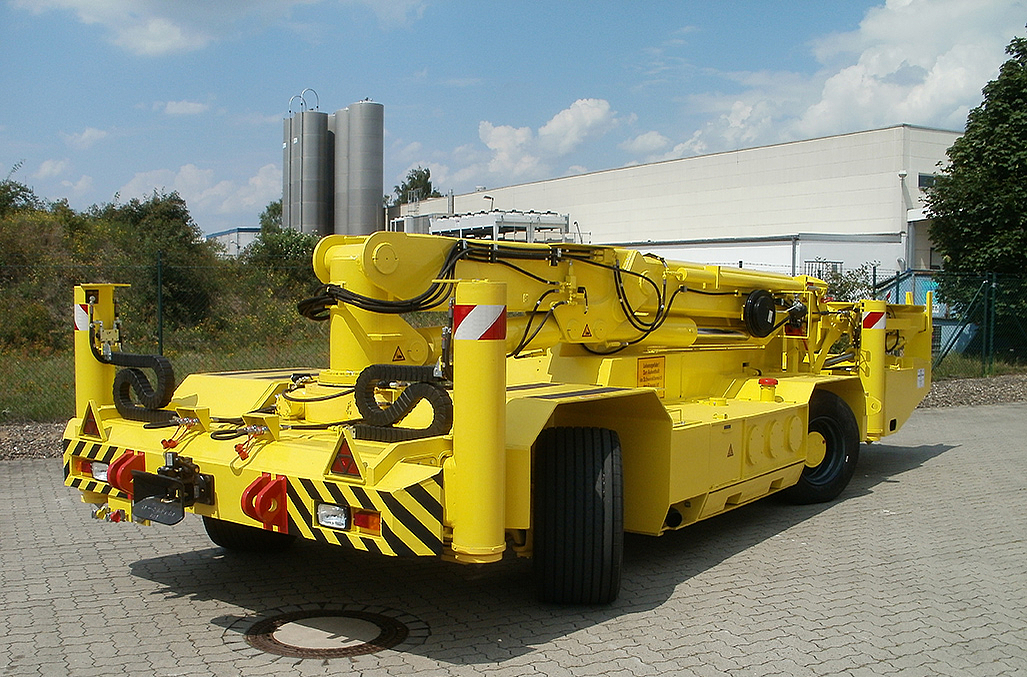

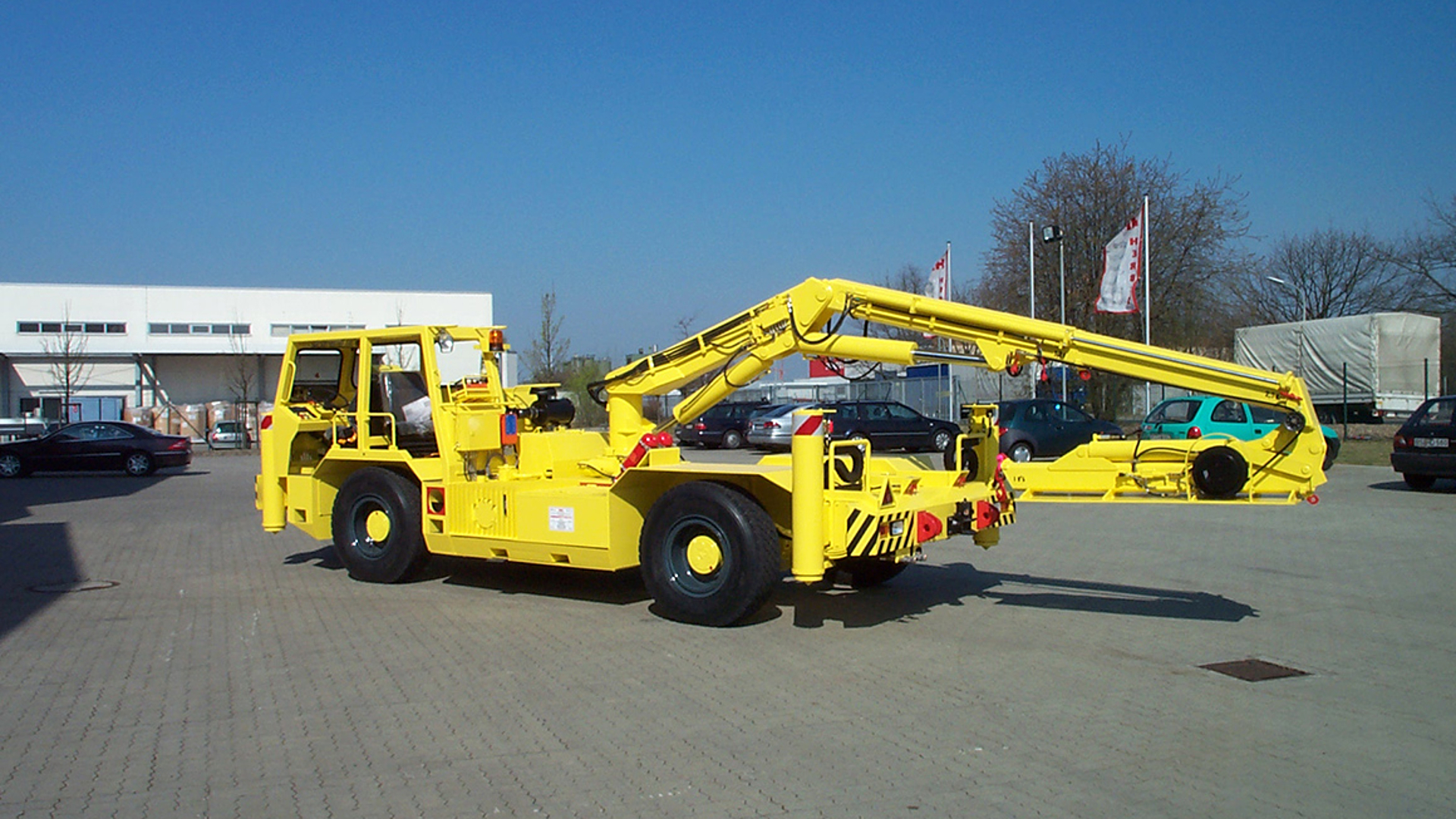

Underground crane - Flexible crane for versatile mining tasks

This crane, designed for mining, has a lifting capacity of 8 tonnes and a transport height of just 1,800 mm, making it ideal for narrow underground applications.

Thanks to a special adapter arm, the crane can be used in a variety of ways, for example for installing conveyor belts. The arm can be lowered to the ground via three pivot points and telescopes up to a hook height of 9,800 mm. The slewing ring is designed for a full 360° range of rotation so that flexible working angles can be easily realised.

It is conveniently operated via radio remote control and the crane vehicle can lift up to 1.5 tonnes unsupported next to or behind the vehicle frame, which offers additional versatility in underground applications.

Other customised versions available on request!
