ORION III
The ORION III is a powerful telescopic handler that has been specially developed for the harsh conditions in mining. With a lifting capacity of up to 10 tonnes (at LSP 600 mm), it handles heavy loads with ease. The machine is powered by a 180 kW diesel engine that fulfils the latest emissions standards. The hydrostatic drive is supported by an additional 3-speed powershift transmission, while all-wheel drive and all-wheel steering ensure optimum off-road manoeuvrability. The oil-bath multi-disc brakes ensure reliable braking even under extreme conditions.

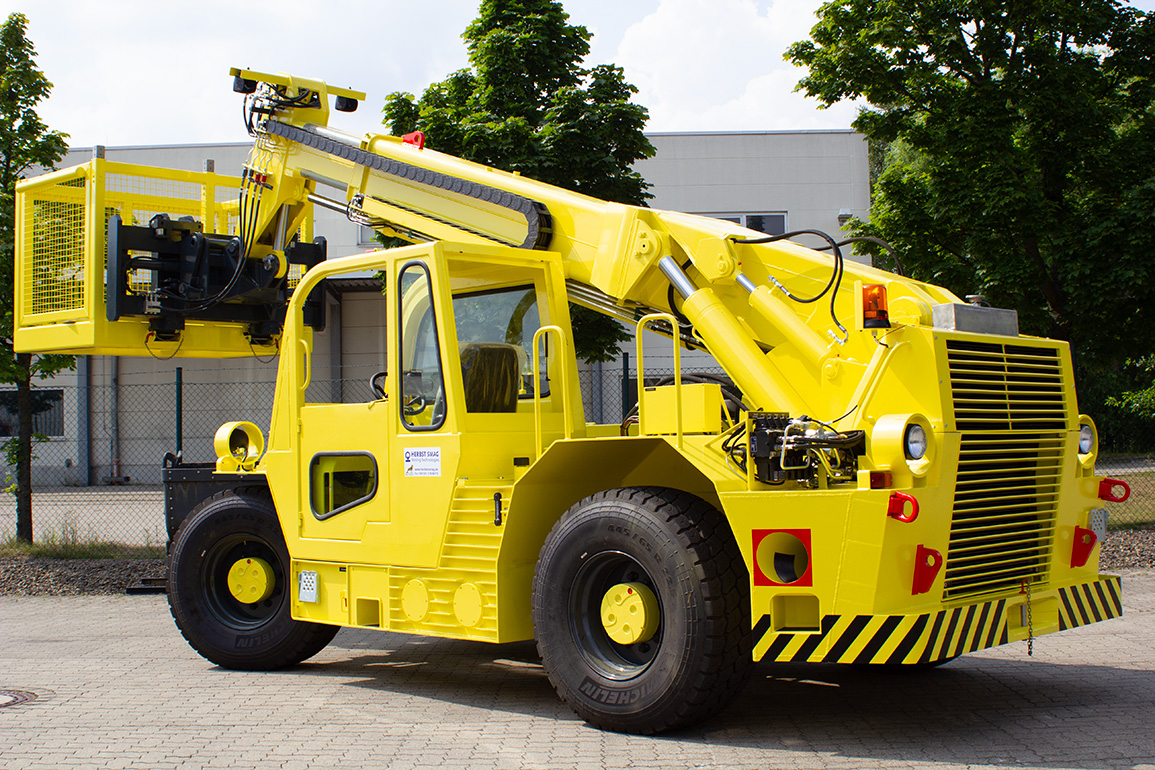

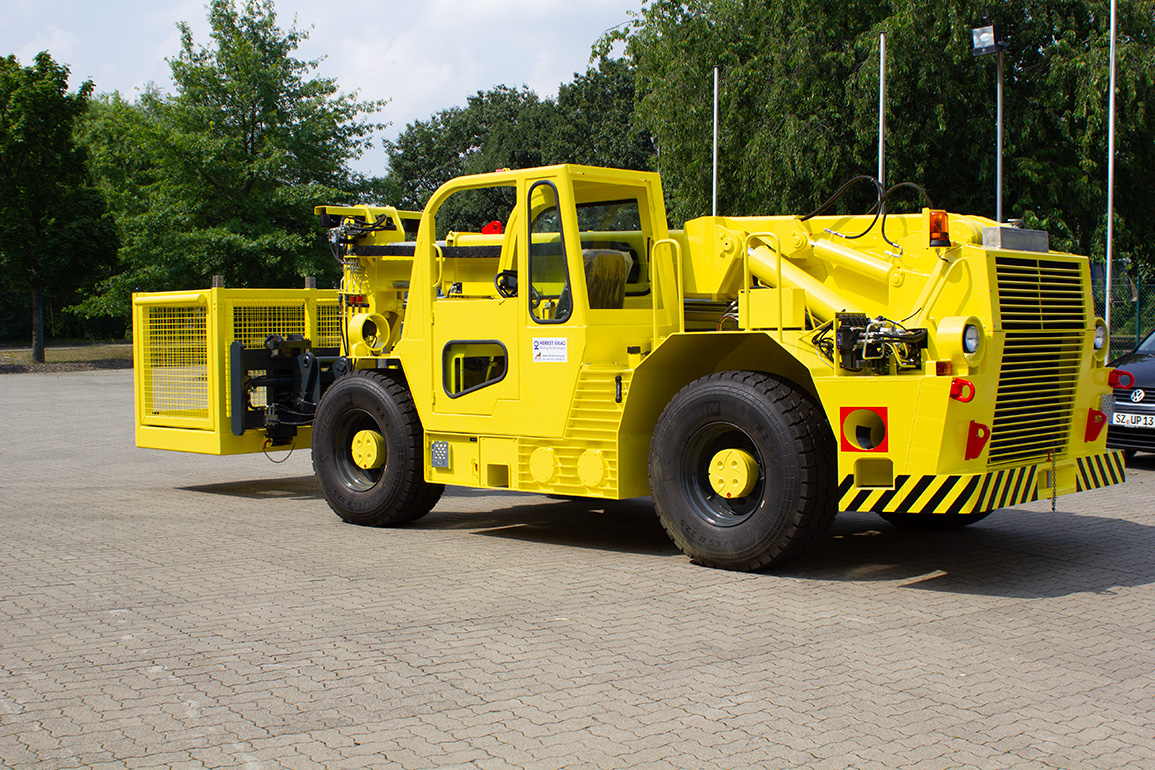

The ORION III is particularly versatile thanks to its quick-change system, which enables the use of various attachments such as a workman basket or crane. The machine can also be used as a platform vehicle without hydraulic stabilisers. The robust design makes the ORION III a reliable partner in demanding underground operations.
| Name / Designation | ORION III |
| Drive | diesel-dynamic |
| Load capacity | > 6,500 kg (with LSP 600 mm) |
| Length to fork back | 6,180 mm |
| Overall width | 2,600 mm |
| Height above overhead guard | 2,400 mm |
| Turning radius | 4,850 mm |
| Engine power | 180 kW Deutz |
| Inclinations Travelling with / without load | on tracks with longitudinal gradients of up to : 28 % with simultaneous transverse gradients of up to : 15 % |
| Stacking inclinations | on tracks with longitudinal gradients of up to : 15 % on simultaneous transverse gradients of up to : 15 % |
| Unladen vehicle weight | 15,240 kg |
| Permissible total weight | 21,740 kg |
| Vehicle speed | 1st gear (load gear) : 0 to 3 km/h 2. Gear : 0 to 30 km/h |
