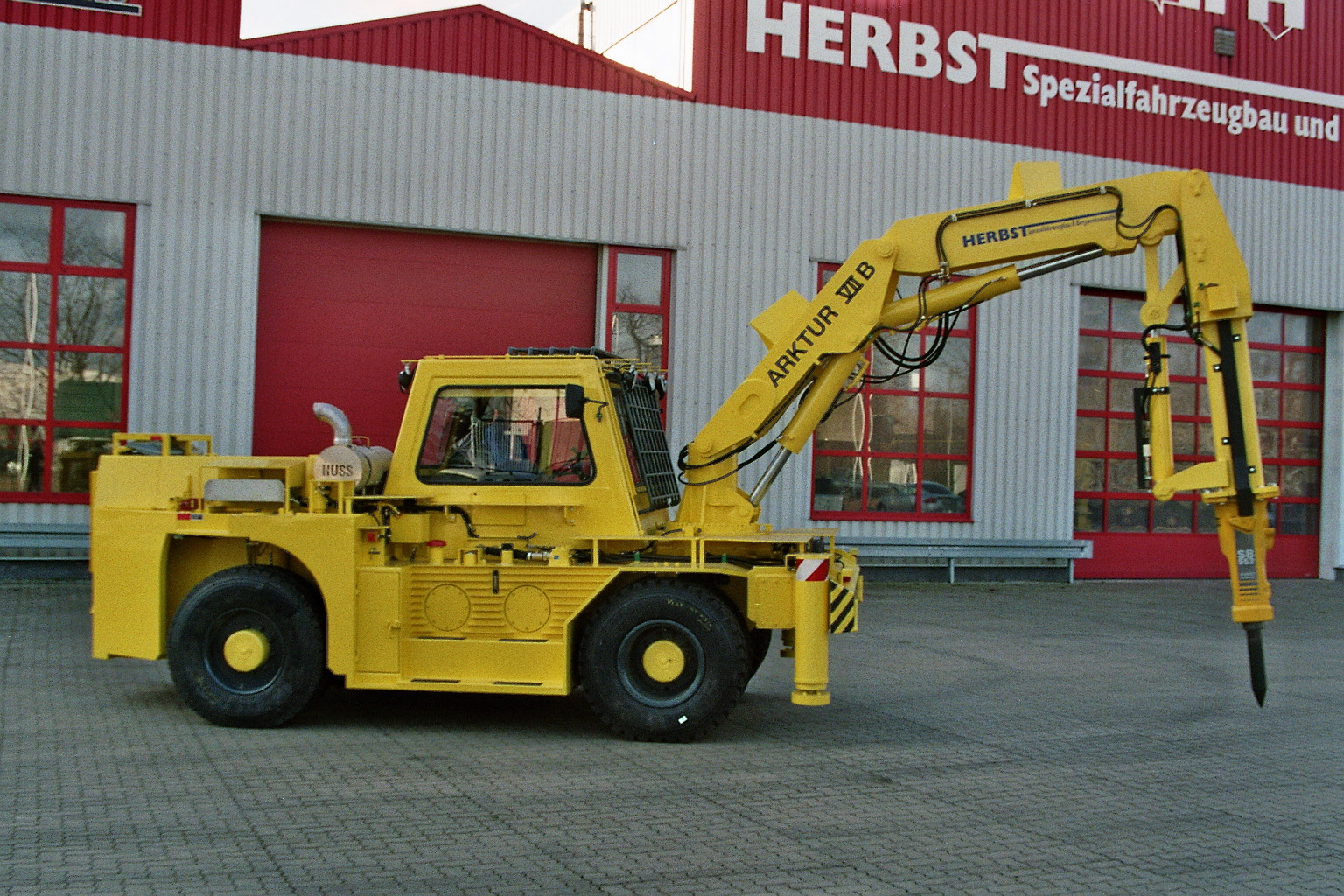

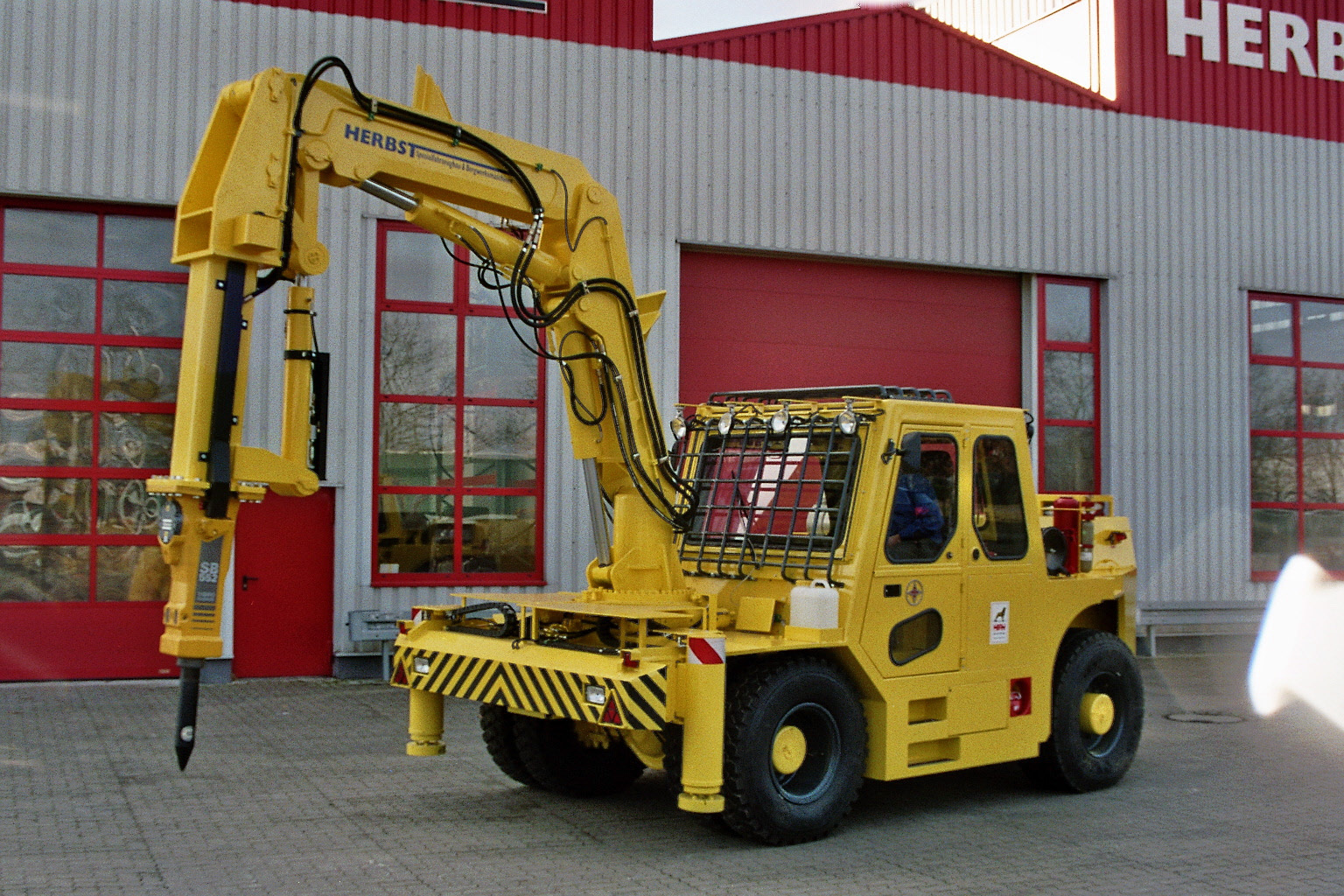

PROXIMA CI - Percussive scaling
The PROXIMA CI is a powerful recovery vehicle with an additional hydraulic hammer, developed for the high demands of mining. Equipped with a triple-folding boom that can be swivelled through 200° via the slewing ring, the vehicle offers maximum flexibility in use. The hydraulic breaker can be raised and lowered by around 90° via a gearbox, enabling precise work even in difficult conditions.
Its robust design makes the PROXIMA CI particularly resistant to the extreme loads encountered in mining. The vehicle can also be used as a platform vehicle - without any hydraulic stabilisers.
A versatile and reliable helper that combines performance, stability and functionality.
| Scaling height | 9,500 mm (90 degrees - vertical) |
| Berauber force on the tool | 114 kN |
| Device length with scaling arm | 12,300 mm |
| Device width on vehicle wheels | 2,650 mm |
| Device width from cab | 2,889 mm |
| Cab height | 2,600 mm |
| Wheelbase | 2,900 mm |
| Permissible gross weight with approx. | 25,400 mm |
| Climbing ability max. | 28% for the operation with a cross slope of 15% |
| Drive engine | Deutz diesel |
| Engine power | 180 kW |
| Transmission | 4 gears forward / reverse |
| Turning radius | 7,100 mm |
| Top speed | 28 km/h |
| Options / design variants | Hammer Dozer blade |
