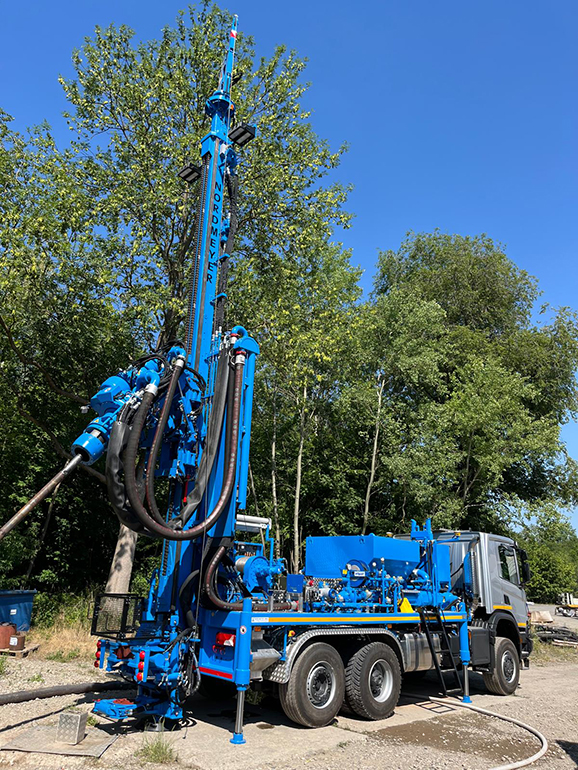

Geo Vario 18

Our most powerful device for geothermal drilling - uncompromising performance.

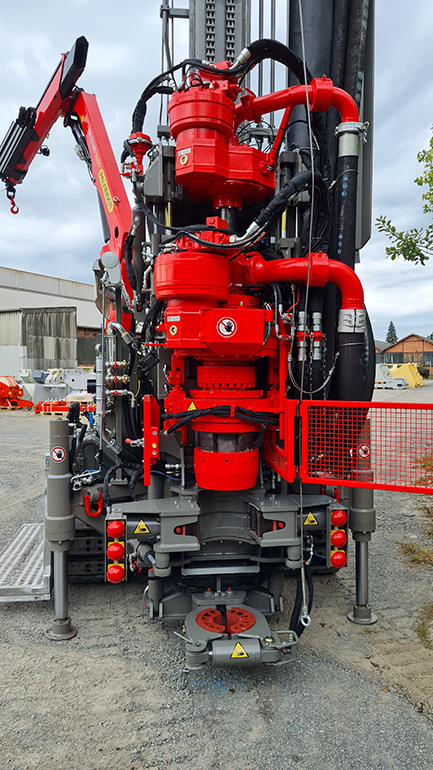

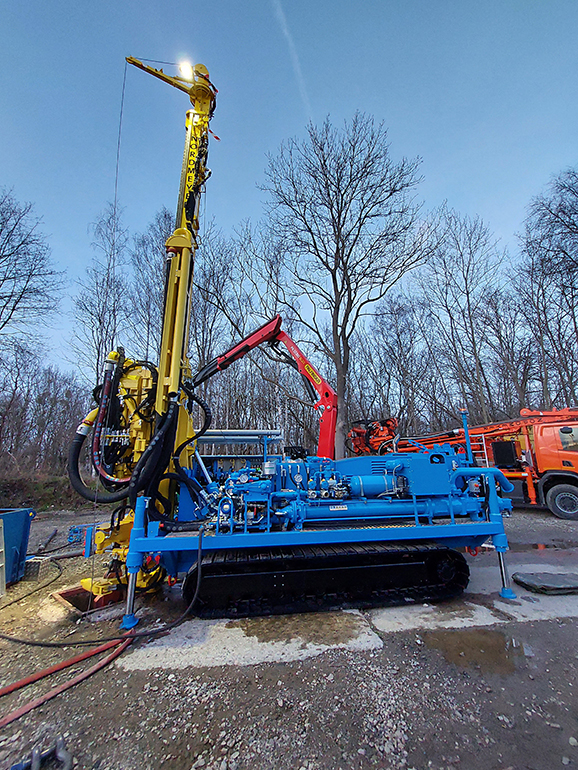

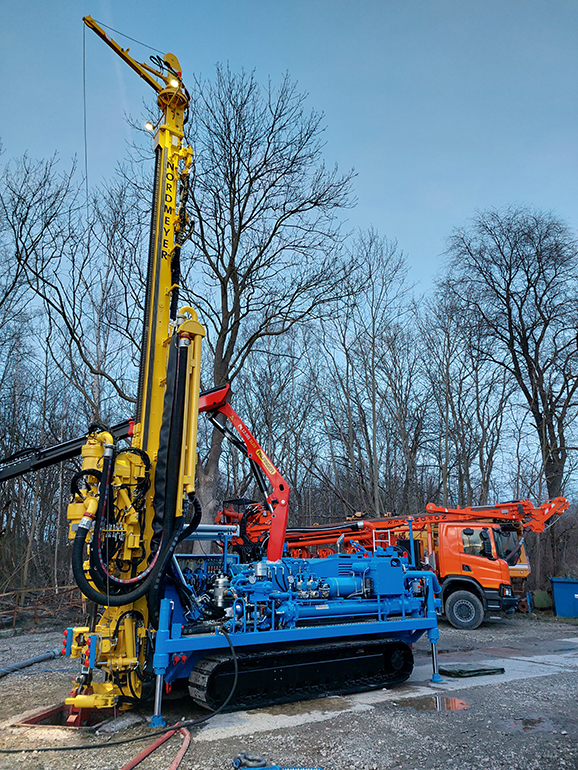

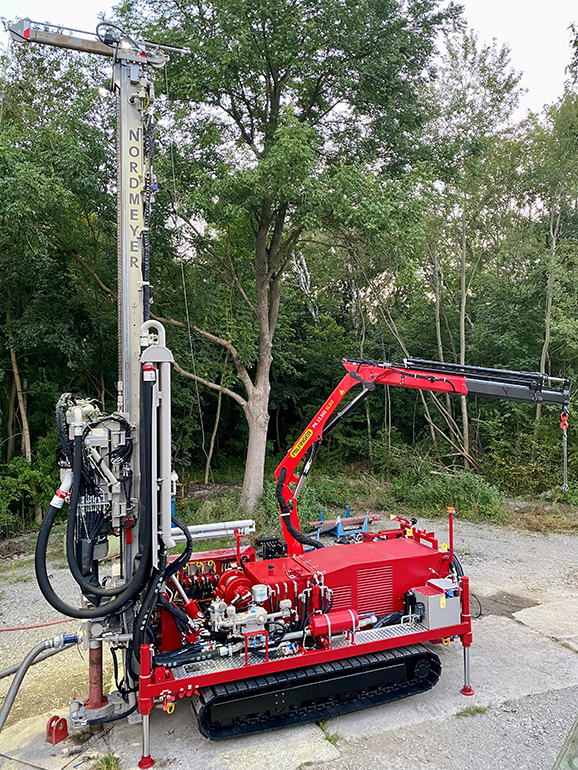

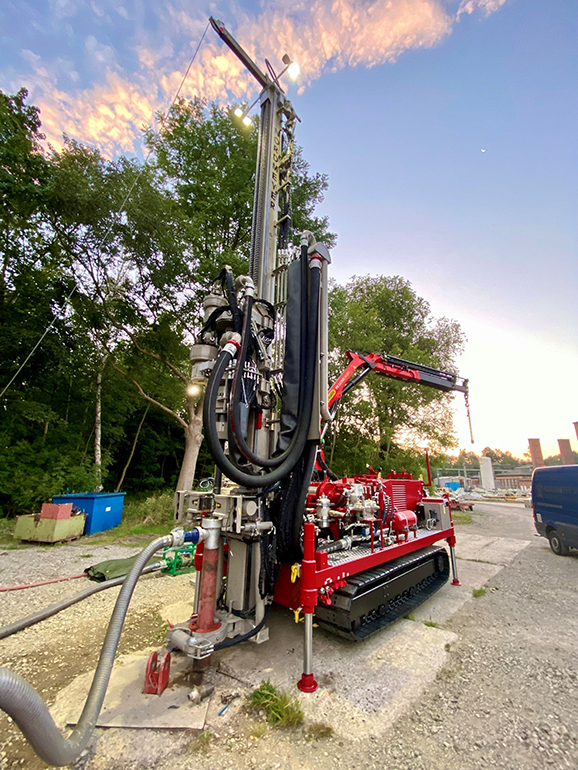

This standardised double-head drilling rig from Nordmeyer has been specially developed for the most demanding geothermal applications. With an impressive retraction force of 18 tonnes, it offers the necessary power reserve for deep drilling in difficult geological conditions - combined with the proven Nordmeyer quality and many years of field experience.

The system is powered by a water-cooled 6-cylinder turbo diesel engine from Volvo® with 210 kW (286 hp), which complies with the latest emission standards in accordance with emission stage V. The use of AdBlue® ensures environmentally friendly and future-proof operation. A newly developed combination cooler for hydraulics, engine and charge air ensures consistently reliable performance, even during intensive continuous use. Despite the high output, the sound pressure level remains reduced - for a more pleasant working environment.

The machine is operated via the tried-and-tested N-Drill multifunction control unit, equipped with an ergonomic rotary control, precise joystick and clearly laid out keypad. This is supported by a modern 12-inch colour display with high contrast, which is easy to read even in direct sunlight - for maximum operating comfort and efficiency in daily use.

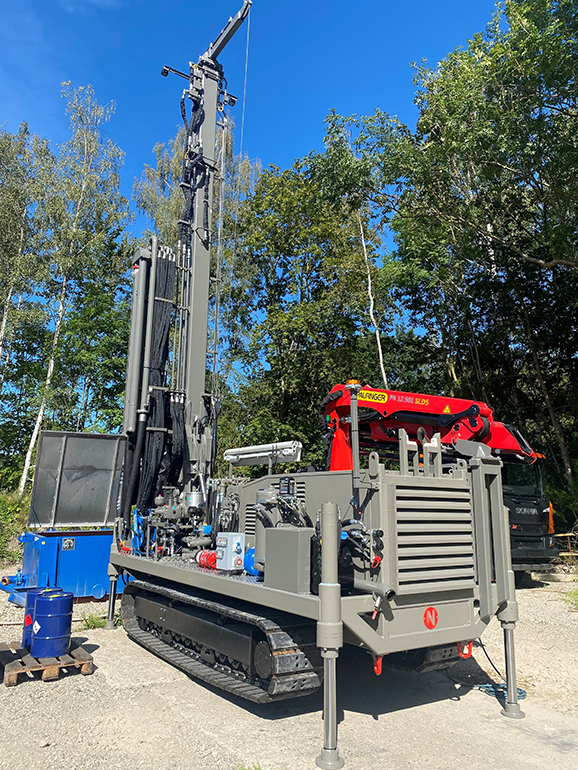

An integrated Palfinger® PK 12.501 loading crane on the operator's platform rounds off the powerhouse. With a reach of 9.8 m and a lifting capacity of 1000 kg at full extension, it offers additional flexibility when handling drill rods and material - ideal for smooth processes on the construction site.

Technical specifications

Device Carrier

Crawler undercarriage

Chassis

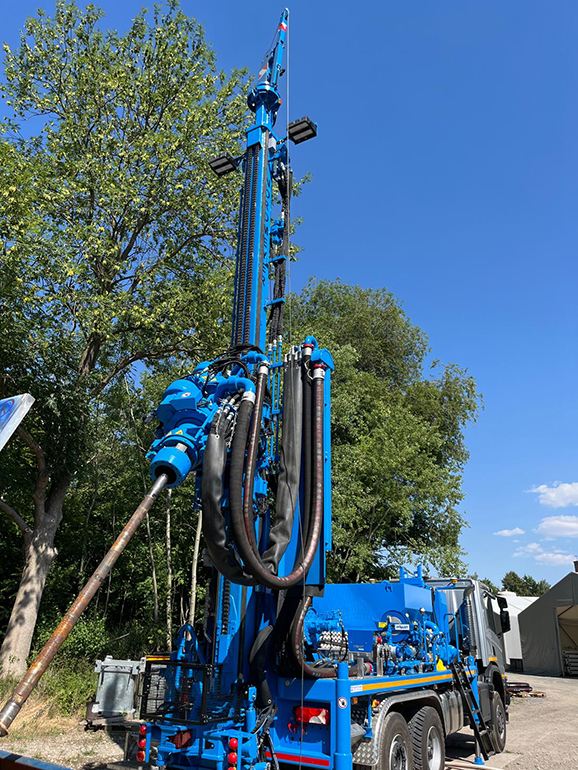

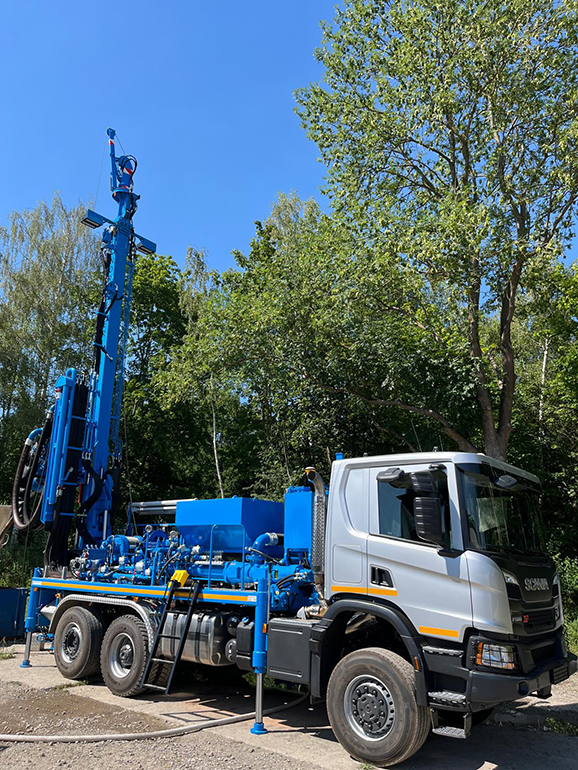

with 3-web plates, rubberised / truck with PTO possible

Engine Power

210 kW

Emission Standard

EU Stage 5

Tractive Force

180 kN

Feed Length

4,6 m, 5,4 m

Drilling Head Torque

16.000 Nm

Rotation Speed

250 U/min

Hollow Shaft / Inner Diameter

75 mm

Machine Width

2.000 - 2.250 mm

Total Weight

16.500 - 19.000 kg

Field of application

Geothermal energy

Possible drilling methods

Direct flush drilling

DTH drilling

Options Equipment features

clamping device

Drilling depth measurement

Twin-Head drilling rig

Flow meter measuring device for water

eccentric screw pump

Device monitoring and fleet management (SMAGLink)

Drill Pipe Break-Out System

Auxiliary compressor

High pressure cleaner

External hydraulic connections

Hydraulic clamping head

Piston pump

Centrifugal pump

Loading crane 12 m

Mast shift

Pipe Press / Pull Mechanismen

cable depth measurement

Cable winch 1,900 kg

Power generator

Tractive force

180 kN

Chassis

with 3-web plates, rubberised / truck with PTO possible
