DSB 5/50 T
Strong. Stronger. For maximum depths and diameters.

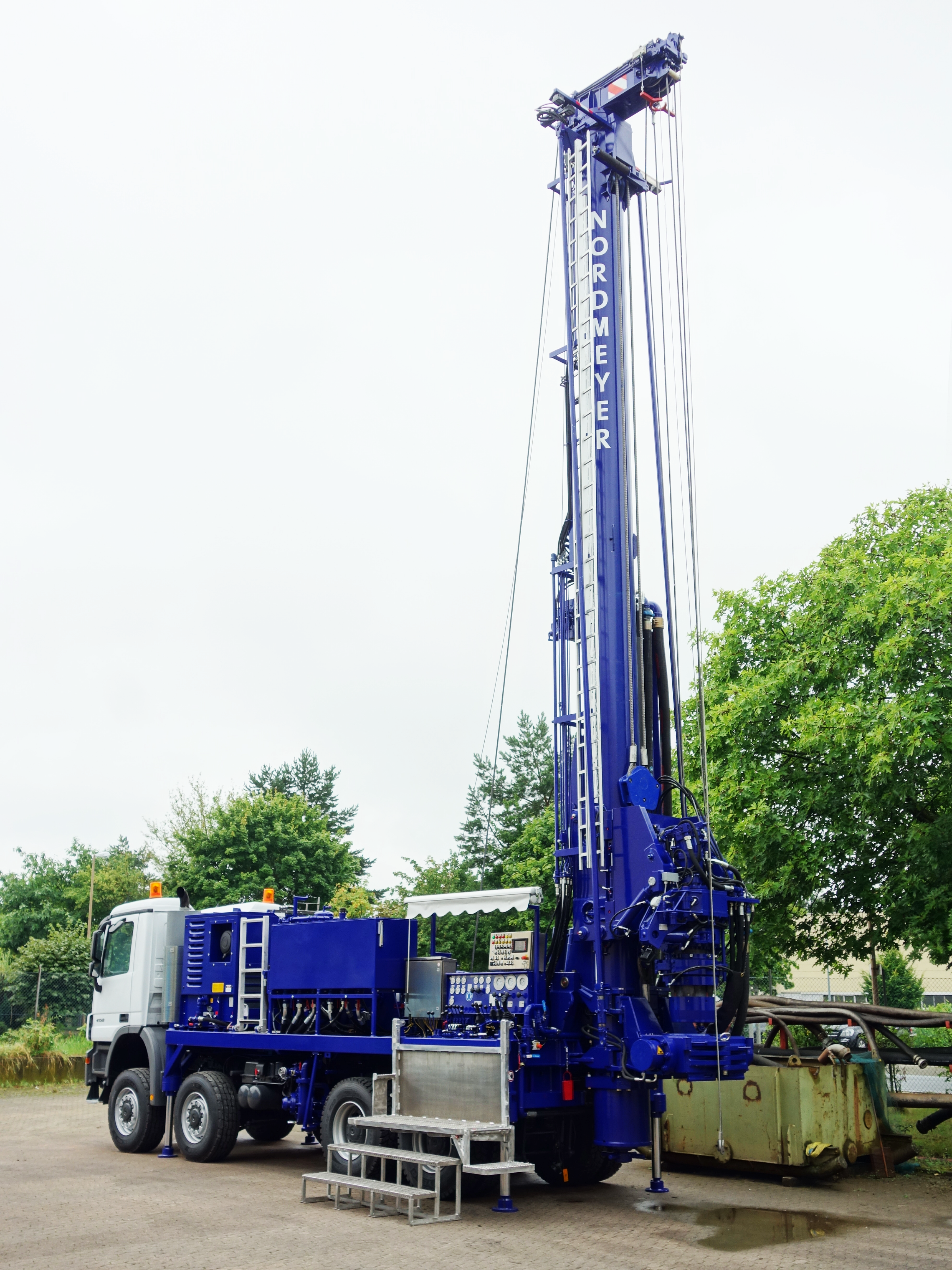

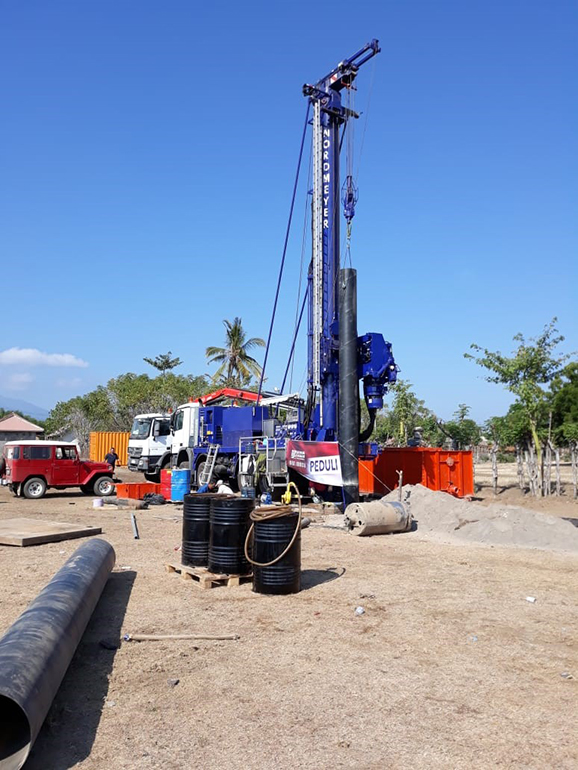

This drill rig is made for challenging deep drilling or large diameters of up to 1,100 mm - uncompromisingly powerful, robust in design and well thought-out down to the last detail.
The powerful power take-off is provided by a water-cooled 8-cylinder turbo diesel engine with 370 kW (503 hp), with an impressive 314 kW (427 hp) available in drilling mode. The retraction force of up to 50 tonnes enables safe and controlled work - even at great depths and in difficult geology.

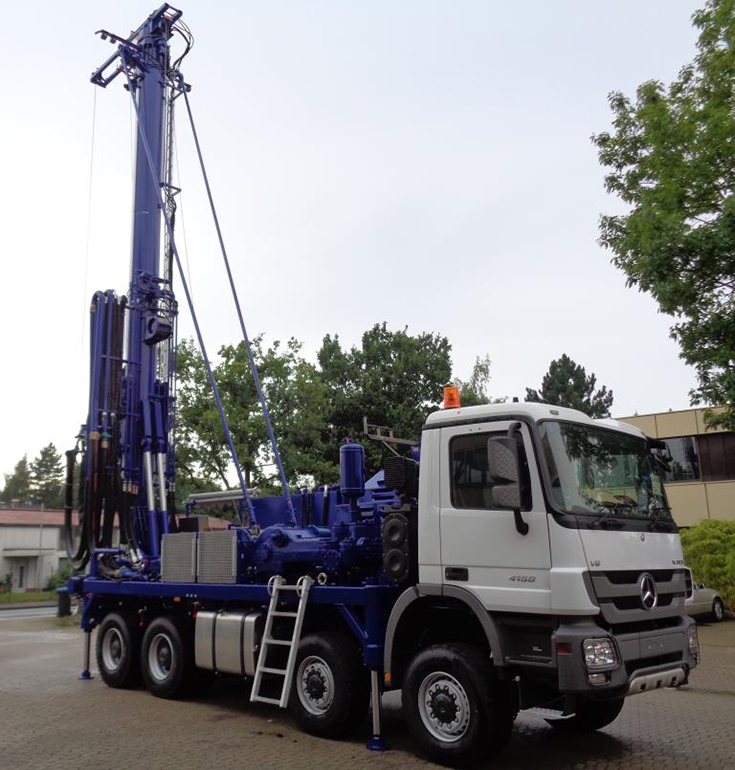

The machine is based on an all-terrain Mercedes-Benz® 8x8 chassis with four axles and permanent all-wheel drive. It is ideally suited for road transport as well as for use in rough terrain.
The drill rig delivers uncompromising performance - wherever pure power and maximum reliability are required
Technical specifications
Device Carrier
4-axle lorry with PTO
Chassis
Truck with PTO e.g. Mercedes Benz
Tractive Force
500 kN
Feed Length
7,2 m
Drilling Head Torque
31.000 Nm
Rotation Speed
320 U/min
Hollow Shaft / Inner Diameter
174 mm
Machine Width
2.500 mm
Total Weight
40.000 kg
Field of application
Well construction
Sampling
Core drillings
Geothermal energy
Possible drilling methods
Direct flush drilling
Dry drilling
Reverse circulation drilling
Air lift drilling
Core drilling
Indirect flush drilling
DTH drilling
Options Equipment features
clamping device
Drilling depth measurement
Flow meter measuring device for water
eccentric screw pump
Device monitoring and fleet management (SMAGLink)
Drill Pipe Break-Out System
Auxiliary compressor
High pressure cleaner
External hydraulic connections
Hydraulic hammer
Hydraulic clamping head
Piston pump
Compressor
Centrifugal pump
Hydr. Percussion system
cable depth measurement
Cable winch 1,900 kg
Cable winch 5,000 kg
Power generator
Tractive force
500 kN
Chassis
Truck with PTO e.g. Mercedes Benz
