DSB 4/30 T
Powerhouse for construction site use - robust, powerful and developed close to the market.

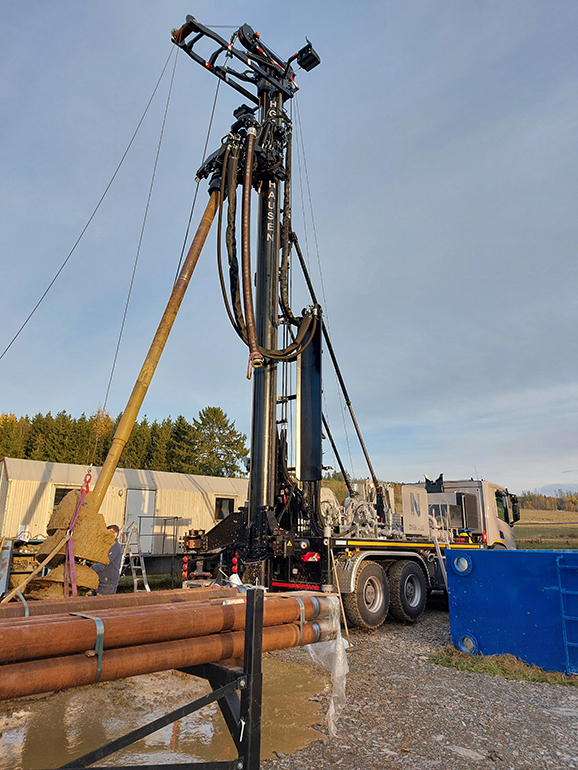

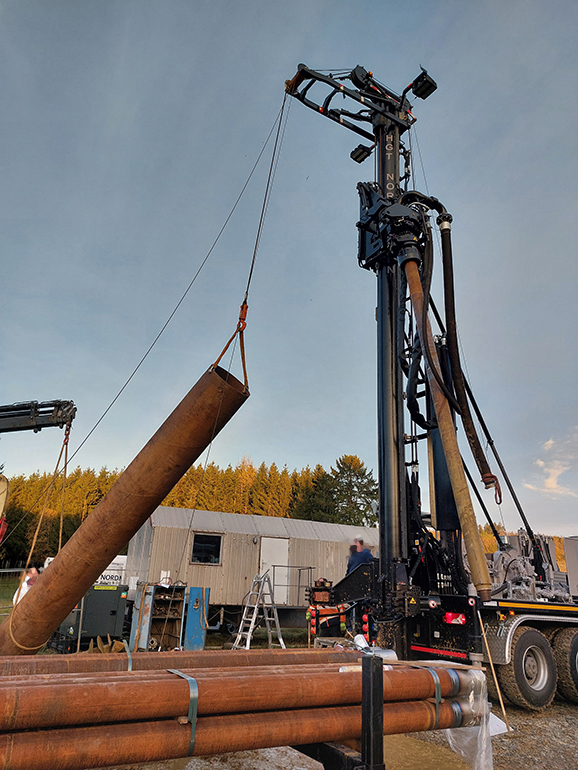

This drill rig combines decades of Nordmeyer experience with practical further development and ensures optimised, high-performance drilling directly on the construction site. The robust design and consistent focus on real-life application requirements make it a reliable partner in daily use.

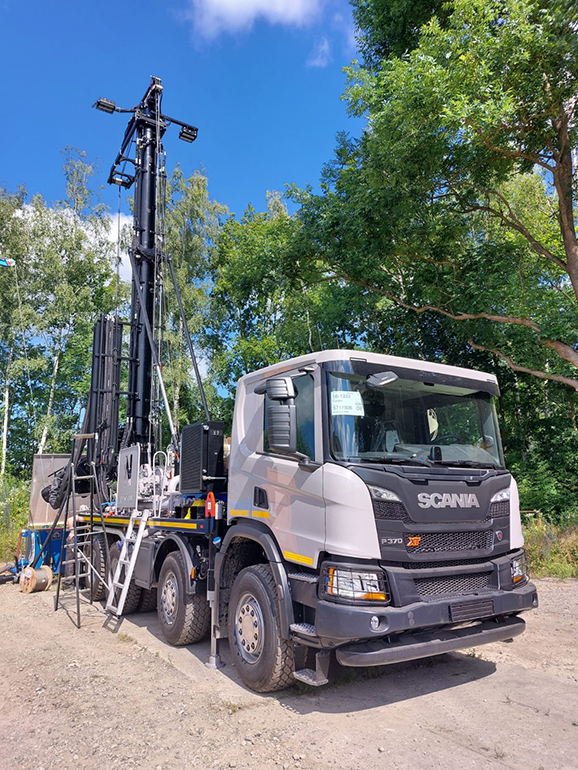

The basis is the SCANIA P410 B6x6 carrier vehicle with three axles and permanent all-wheel drive. The power take-off provides the power required for drilling operations directly on site - ideal for demanding tasks with high mobility.
The machine is powered by a water-cooled 6-cylinder turbo diesel engine from Scania® with 302 kW (410 hp), of which 268 kW (365 hp) is specifically available for drilling operations. Exhaust stage VI and AdBlue® ensure low-emission, future-proof operation. The sound pressure level of 82 dB(A) offers a good balance between performance and working comfort.

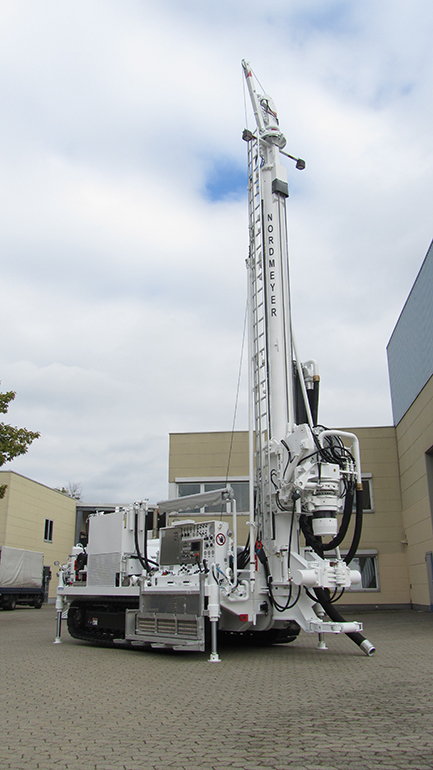

Depending on the drilling method, the rig can be customised - from on-board compressor and casing rotary table to various pump systems for mud drilling. In addition to mounting on the carrier vehicle, it can also be mounted on a crawler undercarriage to extend the range of application to rough terrain.
Technical specifications
Device Carrier
3-axle lorry with PTO
Chassis
Truck with PTO e.g. Scania
Tractive Force
300 kN
Feed Length
4,8 m, 5,8 m, 7,2 m
Drilling Head Torque
26.000 Nm
Rotation Speed
240 U/min
Hollow Shaft / Inner Diameter
174 mm
Machine Width
2.500 mm
Total Weight
28.500 kg
Field of application
Well construction
Sampling
Core drillings
Geothermal energy
Possible drilling methods
Direct flush drilling
Dry drilling
Reverse circulation drilling
Air lift drilling
Core drilling
Indirect flush drilling
DTH drilling
Options Equipment features
clamping device
Drilling depth measurement
Flow meter measuring device for water
eccentric screw pump
Device monitoring and fleet management (SMAGLink)
Drill Pipe Break-Out System
Auxiliary compressor
High pressure cleaner
External hydraulic connections
Hydraulic hammer
Hydraulic clamping head
Piston pump
Compressor
Centrifugal pump
Hydr. Percussion system
cable depth measurement

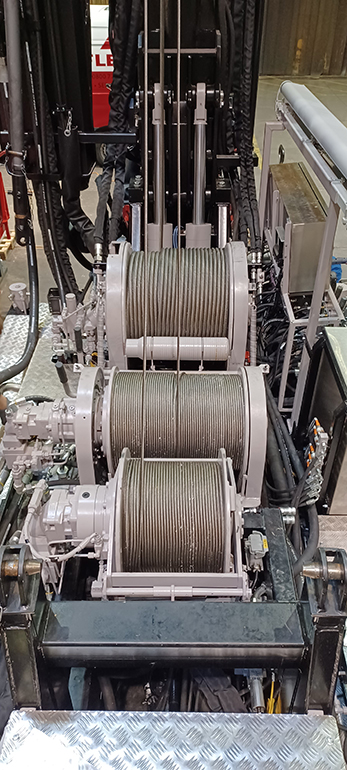

Cable winch 1,900 kg
Cable winch 5,000 kg
Power generator
rotary casing table Ø 324 mm
rotary casing table Ø 419 mm
rotary casing table Ø 521 mm
Tractive force
300 kN
Chassis
Truck with PTO e.g. Scania
